Miniature Force Sensor 1lb Micro Compression Load Cell 200g 500g Force Transducer 2N 5N
The FSMY-200g/500g miniature compression and tension load cell is a highly advanced and precision-engineered device designed to meet the demands of accurate force measurement across a wide range of applications. Featuring M3 tapped holes on both sides of the transducer, this load cell allows for easy mounting of threaded rods, eye bolts, load buttons, or hooks, making it highly adaptable for diverse force measurement tasks. Constructed from durable stainless steel, the FSMY-200g/500g is specifically designed to measure both push and pull forces, ensuring reliable bidirectional force measurement. Its compact s-beam design makes it an ideal choice for applications where space is limited but precision is critical. Powered by proven strain gauge technology, this load cell delivers exceptional accuracy with a resolution of 0.05g/0.1g and a maximum non-linearity of just 0.1% of the full scale. Each unit undergoes rigorous testing and inspection before shipment, ensuring customers receive a reliable, high-quality product they can trust for consistent performance.
The FSMY’s compact and lightweight design makes it perfect for integration into systems requiring precise force feedback and measurement. It is widely used in industries such as robotics, medical devices, textile manufacturing, spring testing, and precision assembly, where accuracy and reliability are paramount. Combining small size, versatility, and high performance, the FSMY-200g/500g load cell stands out as a top-tier solution for professionals seeking dependable force measurement capabilities. Whether used in industrial automation, research, or development, this load cell is designed to deliver consistent and accurate results, making it an essential tool for demanding applications. With its robust construction, advanced technology, and exceptional precision, the FSMY-200g/500g is the ultimate solution for all your force measurement and feedback needs.

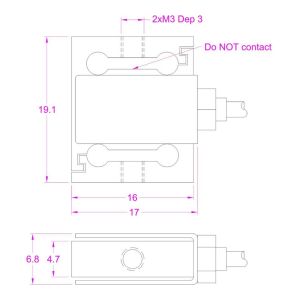

Dimensions(unit in "mm")
| Capacity | 200g / 500g |
| Rated output | 2.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.1% of full capacity |
| Hysteresis | ±0.1% of full capacity |
| Nonrepeatability | ±0.05% of full capacity |
| Creep(5min) | ±0.1% of full capacity |
| Safe overload | 120% of full capacity |
| Ultimate overload | 150% of full capacity |
| Compensated temperature | 0...+40oC |
| Operating temperature | -10...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.02% R.O./oC |
| Input resistance | 350±30 ohms |
| Output resistance | 352±3 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code | Compression@ Green--Signal+ White--Signal- |
A Force Sensor is a transducer that converts mechanical load into mV signal proportional to the applied force.The acting force causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the load/force can be measured by measuring the output signal from the transducer.
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Jr s-beam load cell FSMY-500g is around 2.0mV/V.
Power supply of S type force sensor FSMY-500g is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of S beam force transducer FSMY-500g is normally within -24mV...+24mV for tension and compression force measurement.
A load cell amplifier can be used to convert mV signal into -5-5V / 0-10V / 4-20mA for easy signal processing,taking FSMY-500g and FSC(-5-5V)-24V for example,the load-voltage relationship will be 0-500g compression load VS 0-5V output, 0-500g tension load VS 0-(-5V) output,which is linear regardless of the measurement error.
