Small size compression load measurement transducer 5kN 2kN 1kN 500N 200N 100N

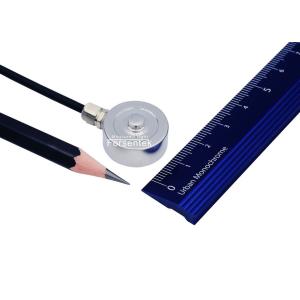

Miniature button type compression load sensor FCLB is made of stainless steel based on strain gauge technology which offers 50N / 100N / 200N / 500N / 1kN / 2kN / 5kN seven measuring ranges to choose from,compact design makes button type load cell FCLB suitable for compression force measurement applications with limited mounting space. Each sensor comes with a 4-meter-long shielded cable, 4xM2.5 threaded holes located on the bottom make it easy to mount force sensor FCLB to a flat platform,you may find load transducer FCLB suitable for applications such as load distribution analysis, mold pressure measurement, force overload protection, clamping force measurement, assembly force monitoring, hydraulics force control and so on.
Dimensions(unit in "mm")
Specifications
| Capacity | 50N / 5kg / 11lb 100N / 10kg / 22lb 200N / 20kg / 45lb 500N / 50kg / 112lbf 1kN / 100kg / 224 lbf 2kN / 200kg / 450lbf 5kN / 500kg / 1124 lbf |
| Rated output | 1.5mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.5% R.O. |
| Hysteresis | ±0.5% R.O. |
| Nonrepeatability | ±0.2% R.O. |
| Creep(3min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.05% R.O./oC |
| Input resistance | >700 ohms |
| Output resistance | >700 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø3*4000mm 4-core shielded cable |
| Wiring code | Red--E+ Black--E- Green--S+ White--S- |
