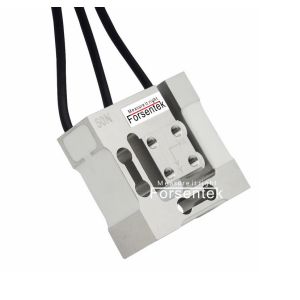

Small 3D force sensor 10N 20N 50N 100N 3D load cell force transducer
Small 3D force sensor FNZ is made of aluminum based on strain gauge technology,tri-axial force sensor FNZ delivers mV/V output for each axis from wheatstone bridge which requires no mathematical manipulation for 3-axis force measurement.Model FNZ is avaialble in 10N / 20N / 50N / 100N measuing ranges for all three axes,each axis can be used for both tension and compression force measurement.Compact structure, high accuracy, low crosstalk, competitive price, you may find multi axis force sensor FNZ suitable for applications such as friction force measurement, force control in robotics, force monitoring in handing devices, industrial test benches, etc..
Specifications
| Capacity | 10N / 1kg / 2.2lb 20N / 2kg / 4.4 lb 50N / 5kg / 11lb 100N / 10kg / 22lb |
| Rated output | 1.0mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.2% R.O. |
| Hysteresis | ±0.2% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(2min) | ±0.2% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | 0...+25oC |
| Operating temperature | -10...+50oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.01% R.O./oC |
| Input resistance | 350±50 ohms |
| Output resistance | 350±10 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP62 |
| Material of element | Aluminum alloy |
| Cable | Ø3*2000mm(for each axis) |
| Wiring code | Red--E+ Black--E- Green--S+ White--S- |
Small 3D force sensor 10N 20N 50N 100N 3D load cell force transducer
Ordering code of 3D loa cell force transducer FNZ
| Part No. | Capacities |
| Fx=Fy=Fz | |
| FNZ-10N | 10N |
| FNZ-20N | 20N |
| FNZ-50N | 50N |
| FNZ-100N | 100N |
Dimensions(unit in "mm")
